Functional Film Roller Shade (Hanzen Collection)

🪟 Functional Film Roller Shade – Thermal Protection and Light Management

The Functional Film Roller Shade collection offers three advanced solutions in a single family of products: reflective heat insulation, non-reflective heat insulation, and transparent film. Each variant is engineered to meet different needs such as solar energy control, glare reduction, UV blocking, and visibility management. Whether you need to minimize heat, reduce light transmission, or preserve transparency with hygienic benefits, these films provide reliable performance for residential, commercial, and institutional settings.

---

🔹 Heat Insulation Film (Reflection)

Delivers high thermal insulation with a reflective back surface that rejects up to 81% of total solar energy. This option is perfect for areas with high sun exposure, ensuring a cooler, more energy-efficient environment.

🔹 Heat Insulation Film (Non-Reflection)

Provides effective heat insulation without a shiny finish. Rejecting 52% of total solar energy, it offers a more discreet look while still improving comfort and energy savings.

🔹 Transparent Film

Maintains high light transmittance (87%) while offering hygienic protection, particularly against droplet spread. Ideal for spaces that require clarity and brightness without compromising on safety.

---

🔑 Key Features

• Three variants: reflective, non-reflective, and transparent.

• High solar energy rejection for heat control.

• UV protection to reduce harmful exposure.

• Suitable for residential, commercial, and public spaces.

• Designed for comfort, safety, and energy efficiency.

---

📐 Technical Specifications
Composition: 100% PET

Transparent Film
Width: 152 cm (59.8 in)
Thickness: 0.086 mm ± 5%
Visible Light Transmittance: 87%
UV Transmittance (300–380 nm): < 3%
Total Solar Energy Rejected: 12%
Fire Classification: None

Non-Reflective Film
Width: 152 cm (59.8 in)
Thickness: 0.086 mm ± 5%
Visible Light Transmittance: 15%
UV Transmittance (300–380 nm): < 1%
Total Solar Energy Rejected: 52%
Fire Classification: None

Reflective Film
Width: 152 cm (59.8 in)
Thickness: 0.086 mm ± 5%
Visible Light Transmittance: 2%
UV Transmittance (300–380 nm): < 1%
Total Solar Energy Rejected: 81%
Fire Classification: None

---

🧼 Care Instructions

• Clean with a soft damp cloth.

• Use only mild soap and water.

• Avoid abrasive or chemical cleaners.

• Do not scratch or fold the film surface.

---

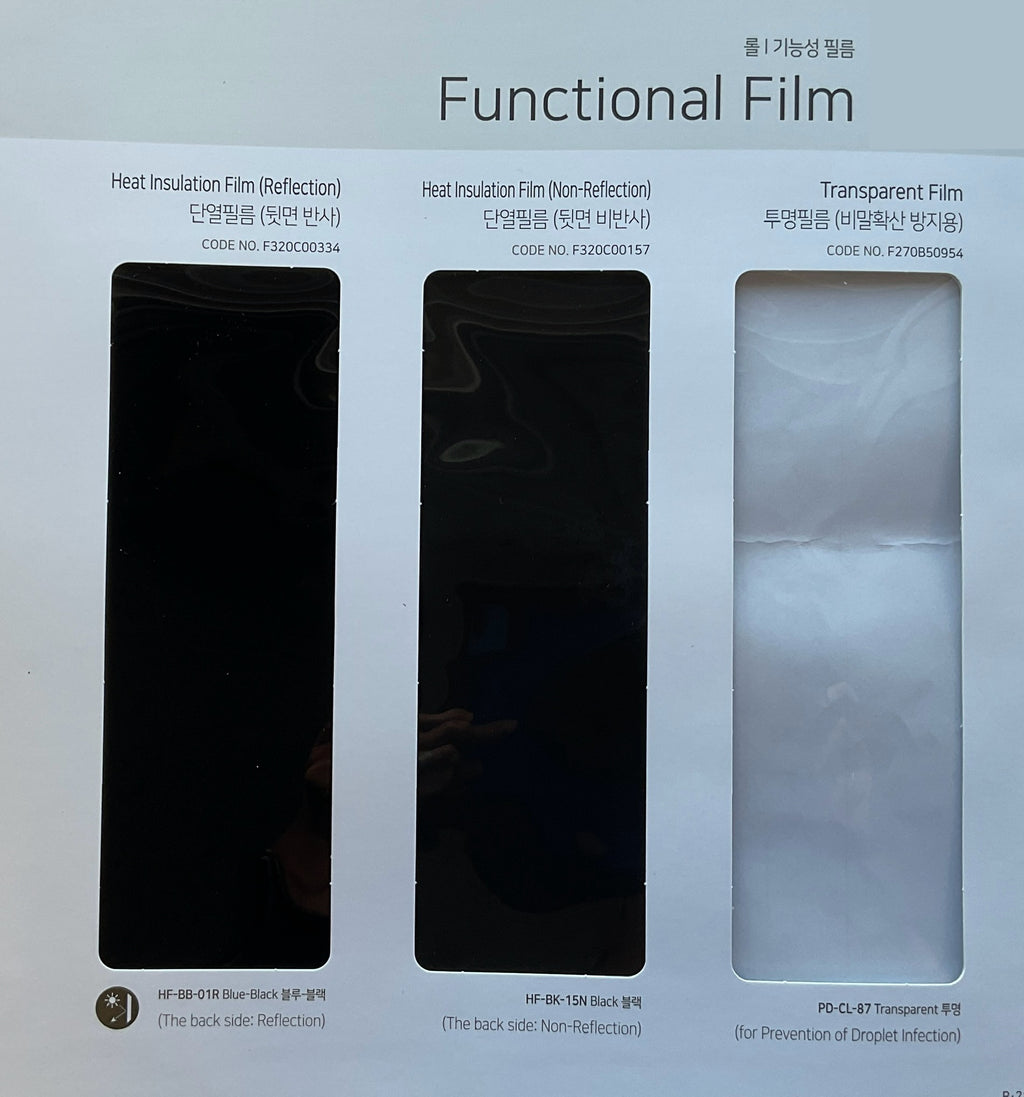

🎨 Real Color Options

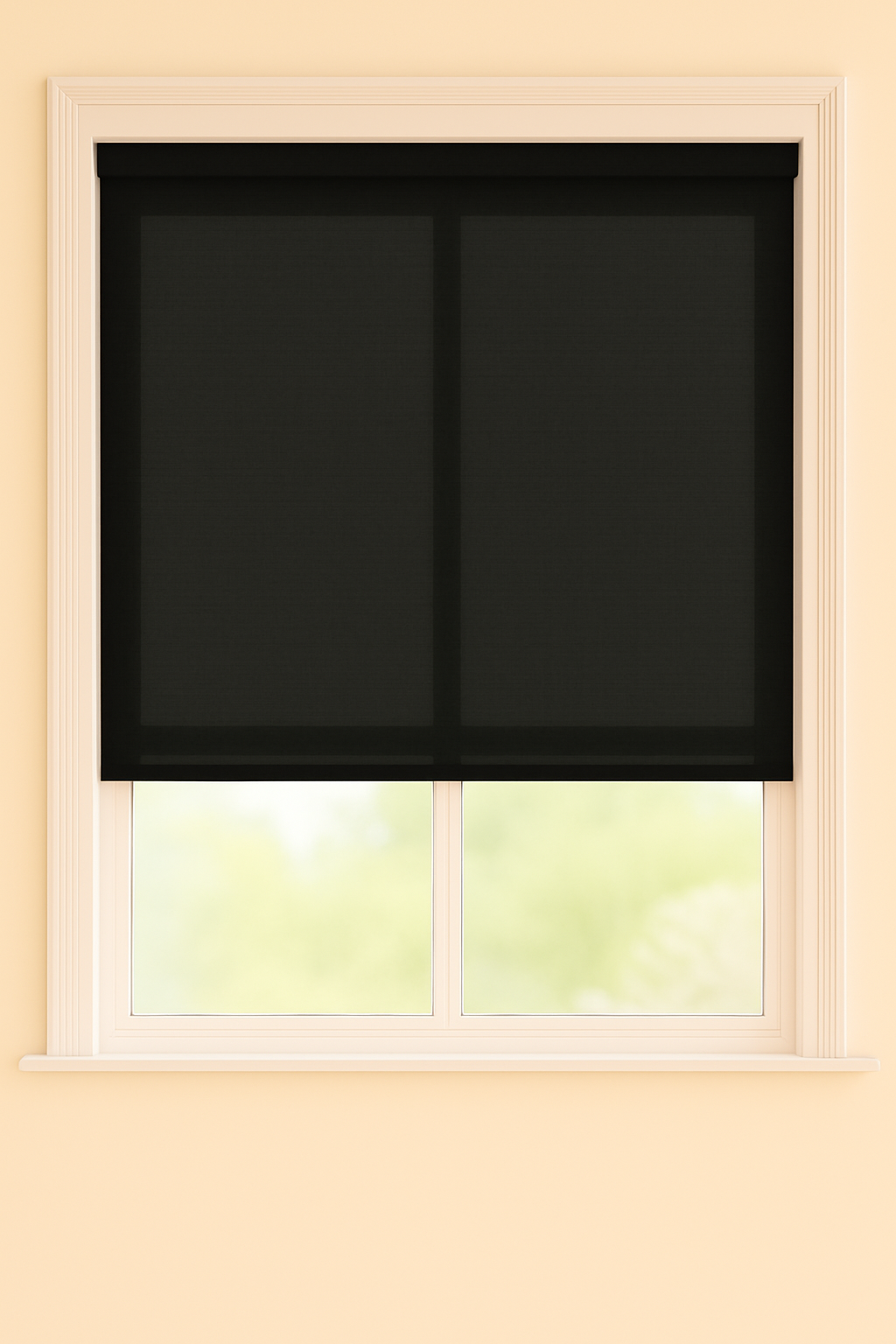

HF-BB-01R – Blue-Black (Reflection)

Reflective film with a dark finish for maximum heat and glare control.

HF-BK-15N – Black (Non-Reflection)

Matte black finish, ideal for discreet energy-saving applications.

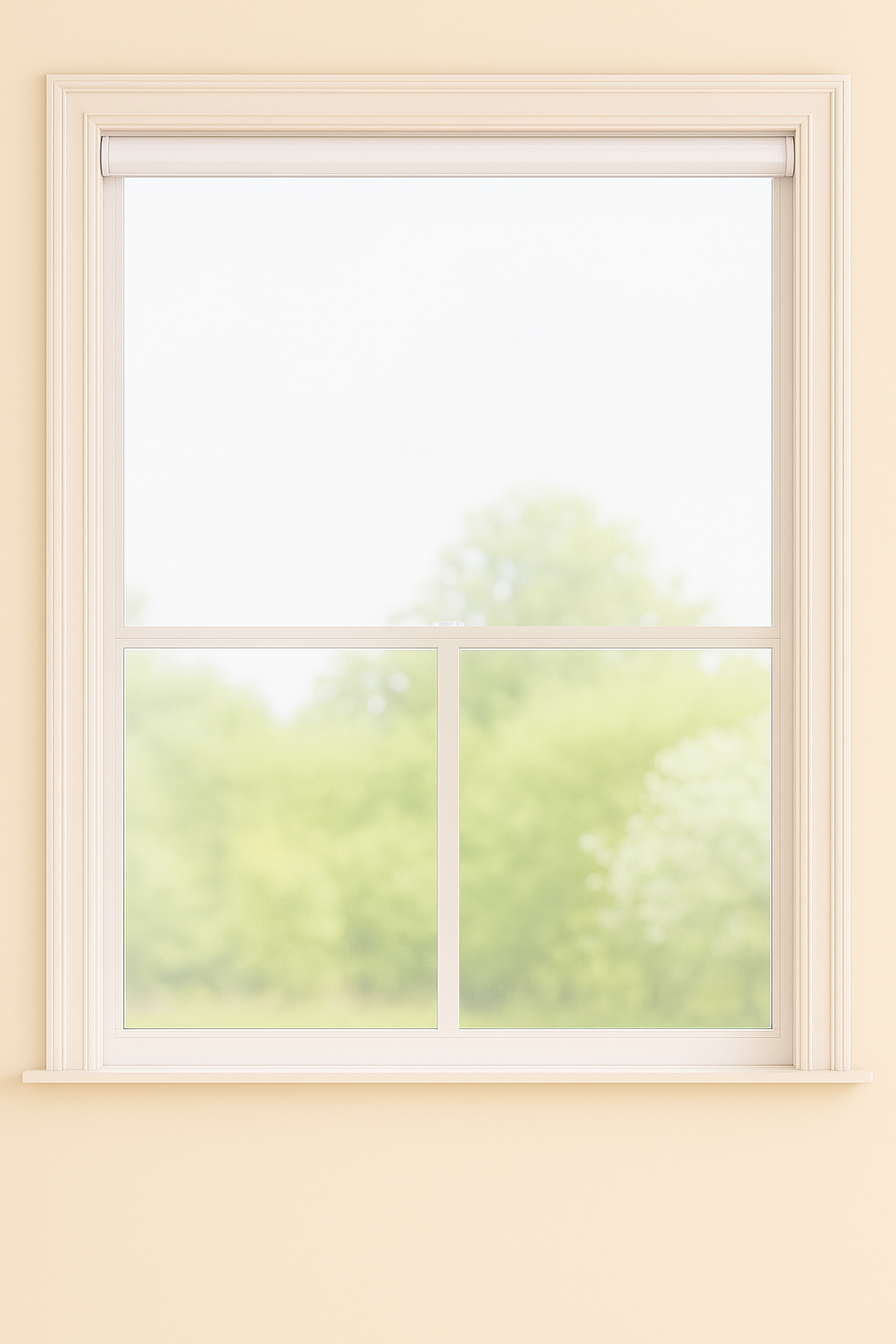

PD-CL-87 – Transparent

Clear finish that preserves visibility and brightness while adding hygienic protection.

---

⚠️ Important
Colors, finishes, and optical properties may vary slightly depending on lighting and screen settings. We recommend reviewing a physical sample before making the final selection.
